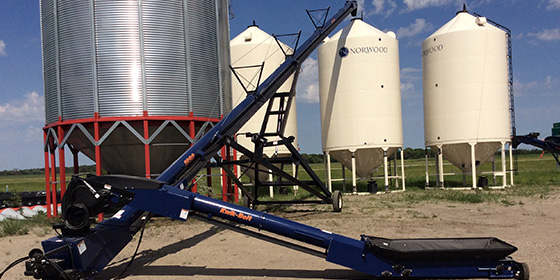

Kwik-Belt Belt Conveyors

Features Include

  • 10" x 12 Ga tube w/ 18" 2ply chevron belt (10,000 Bu/hr)
  • 12" x 12 Ga tube w/ 22" 2ply chevron belt (14,000 Bu/hr)
  • 14" x 12 Ga tube w/ 26" 2ply chevron belt (18,000 Bu/hr)
  • Weather guard standard
  • A-frame undercarriage on 30’ to 55’
  • Hydraulic scissor lift on 65’ to 125’
  • Heavy-duty, long-lasting PEER Bearings: 1-1/2" (18 Series) 1-15/16" (22 Series) 2-3/16" (18 Series)
  • Cable only trussing on 55’ to 90’
  • Steel trussing on 100’ to 125’

Options Inlude

  • Swing away models available in 65’ to 125’
  • Electric, Hydraulic, Gas or PTO drive
  • Electric or hydraulic power swing
  • Self-propelled mover kit
  • Hydraulic winch kit
  • Fender and light kit
  • Drive clutch kit

Available Grain Conveyor Sizes

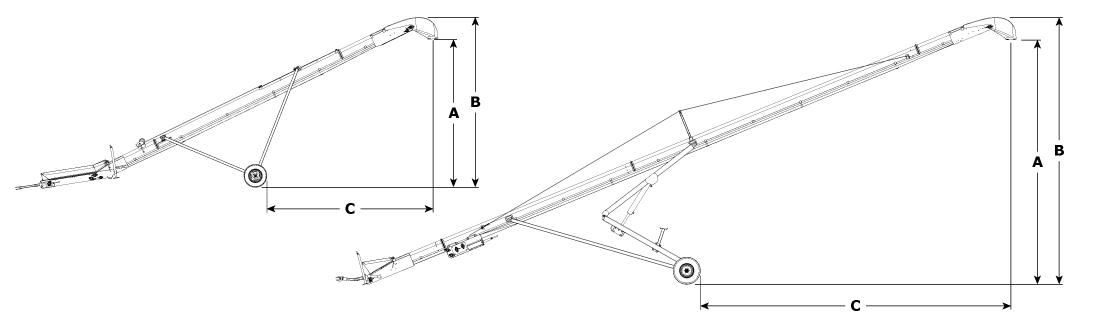

Model Min Incline Max Incline Width Weight

A B C A B C

1838 FL 8’-6" 10’-9" 16’-10" 17’-2" 19’-3" 15’-11" 7’-8" 2005 lbs
1843 FL 9’-2" 11’-6" 19’-3" 19’-9" 21’-10" 17’-8" 7’-8" 2140 lbs
1848 FL 10’-6" 12’-10" 21’-8" 22’-2" 24’-3" 20’-5" 7’-8" 2265 lbs
1830 TD 7’-0" 9’-4" 11’-8" 14’-7" 16’-8" 10’-1" 7’-8" 1510 lbs
1835 TD 8’-3" 10’-7" 12’-10" 17’-1" 19’-2" 12’-10" 7’-8" 1615 lbs
1840 TD 8’-11" 11’-3" 15’-7" 19’-7" 21’-8" 15’-3" 7’-8" 1730 lbs
1845 TD 9’-7" 11’-11" 19’-4" 22’-1" 24’-2" 17’-11" 7’-8" 1845 lbs
1850 TD 10’-1" 12’-5" 21’-10" 24’-7" 26’-8" 20’-2" 9’-0" 1970 lbs
1835 8’-5" 10’-9" 13’-1" 17’-1" 19’-2" 13’-0" 7’-8" 2005 lbs
1845 9’-10" 12’-2" 19’-6" 22’-1" 24’-2" 18’-1" 7’-8" 2240 lbs
1855 12’-4" 14’-6" 22’-4" 27’-1" 29’-2" 23’-2" 9’-0" 2375 lbs
1865 9’-5" 11’-9" 24’-5" 32’-1" 34’-2" 26’-3" 11’-0" 3025 lbs
1875 10’-3" 12’-7" 30’-9" 37’-1" 39’-2" 31’-1" 11’-0" 3295 lbs
1890 12’-3" 14’-7" 39’-1" 44’-7" 46’-8" 38’-5" 11’-3" 3920 lbs
18105 12’-2" 14’-6" 46’-5" 52’-1" 54’-2" 46’-2" 11’-3" 4745 lbs
