Kwik-Koulter

1. CAT 5 ARTICULATING HITCH

• Designed to allow 45 degrees of articulation


• Large contact area, dramatically reducing draw pin and hitch wear.


• 2-3/4" Pin capacity with a 2" pin insert.

2. HYDRAULIC JACK

Provides quick, easy disconnection from tractor. Lifts vertically without moving machine backward and forward. Designed with less moving parts for a simpler more reliable operation.

3. COLOR CODED HYDRAULIC HOSES

• Color coded anodized aluminum grips.


• Grips feature a knurled finish for easier connections.


• Each grip is laser engraved with + or - for easier identification.

4. HIGH FLOTATION TIRES

Unsurpassed flotation that has a large foot print. Makes for excellent weight distribution for reduced ground-bearing pressure and less soil compaction.

5. SINGLE POINT DEPTH CONTROL

• Single point depth control allows for quick and easy adjustment of depth.


• Easy to read tool position indicators.

6. LED LIGHTS

LED Lighting for high visibility and durability.

7. COULTER DISKS

• 20” - 8 Wave Coulter Disks provide maximum cutting and mixing effectiveness of any residue.


• 6°Angle, 0° Pitch disk position


• 12” Staggered spacing, 6” overall

8. ADJUSTABLE GANG FRAMES

• Phased gang frames allow the coulters to be raised and only harrows used.


• Coulters have a 6” max depth controlled by phasing cylinders on adjustable gang frames.

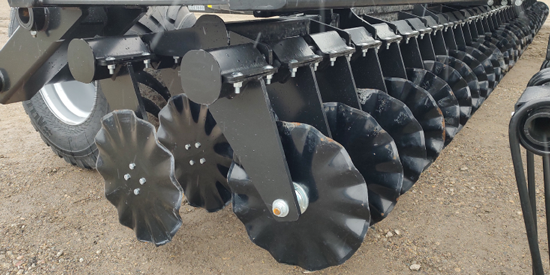

9. TORSION CORDS

Four natural rubber elements provide a pretension, allowing the discs to follow the contour of the land. Skating over obstructions and springing back to operating position. Each shank is independent, allowing for ideal flow of residue.

10. GREASELESS SEALED DISC HUBS

Relubrication-free: Integrated solution increases farm productivity. Suitable for virtually any agricultural implement arm, the greaseless hub for tillage discs is a robust, easy fit hub sealing solution. The unit features a flanged outer ring that is pre-drilled and taped to accommodate a disc. A stationary inner ring fitted with a threaded stub shaft helps ensure fast, easy mounting.

11. ABRASION RESISTANT HARROW TINES

• 4-Bar Harrows with 5/8” x 30” abrasion resistant tip spring tines.


• Tine angle is adjustable from 90° to 45°


• Down pressure springs for soil penetration and reduction in bounce.

12. FINISHING BASKETS

• Single and Dual basket configurations.


• Rod, Flat Bar, and Coil baskets
