Uni-Body Rear Discharge Stainless Tender

Our stainless-steel tenders are integrated on a lightweight D.O.T. Trailer. The enclosed rear discharge conveyor is gentle on commodity.

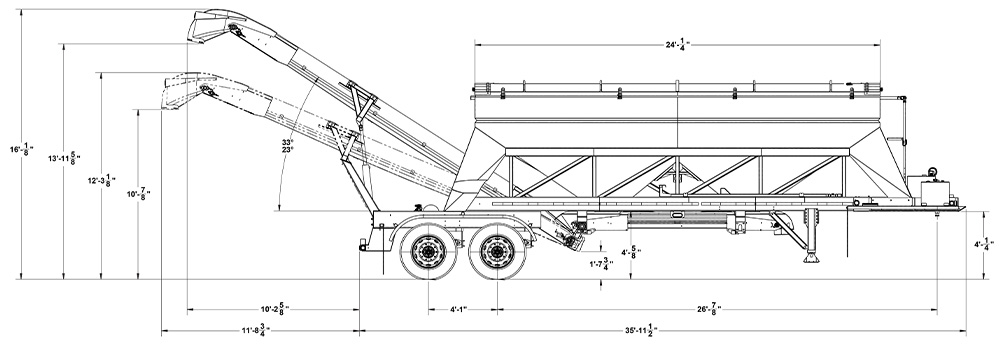

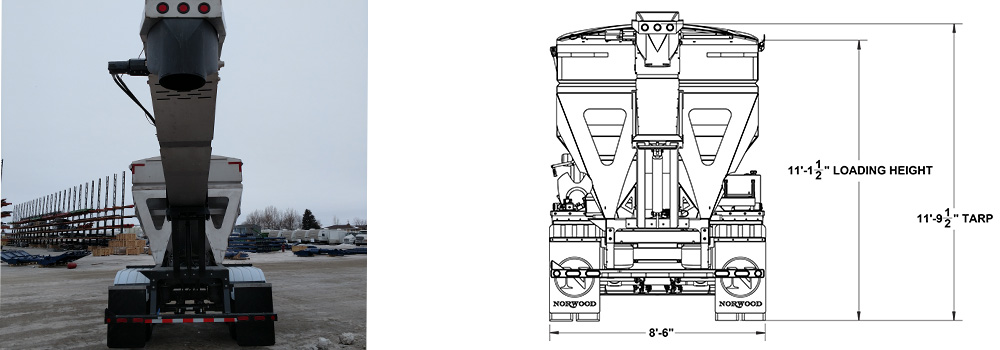

Uni-Body Rear Discharge Model

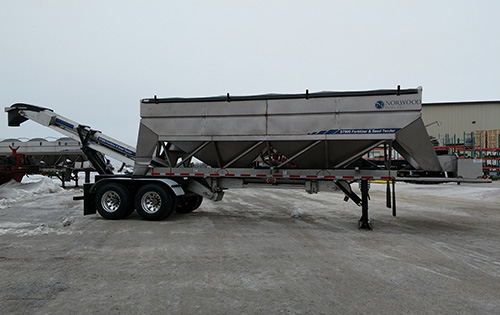

ST900 Fertilizer and Seed Tender:

2 Compartments - 900 cu/ft. - Dry weight of trailer: 13,700 lbs.

Power Options:

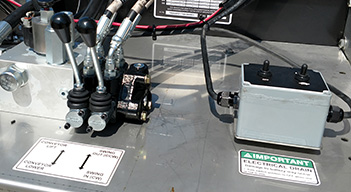

Truck supplied wet kit

Truck supplied wet kit. (Requires 16 gal./min and 2700 psi.)

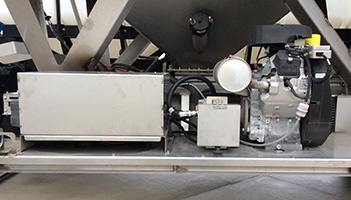

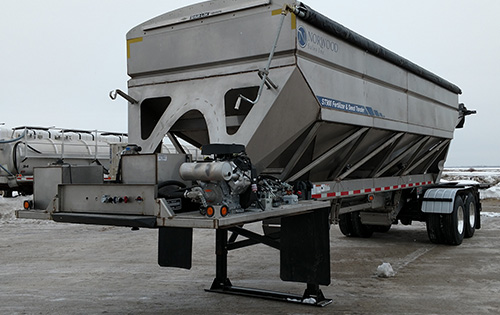

Self-Contained Power

Self-contained power hydraulic power pack, includes Kohler EFI engine, pump and reservoir. Trailer houses (two) 25-gallon tanks for hydraulic fluid and gasoline.

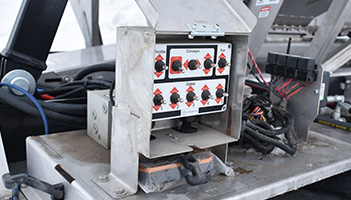

Electric Manual Controls

Controls gates and conveyor. Includes manual override control box. Cased in a weather-proof stainless box.

Standard Features:

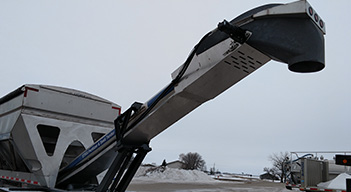

Rear Discharge Conveyor

10" x 30’ Conveyor, 15" wide all rubber belt with 150 ton/hr capacity.

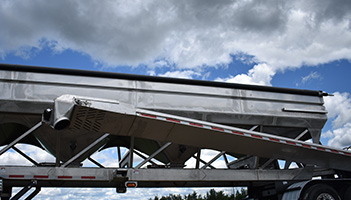

Enclosed Conveyor Belt Return

The belt return is enclosed to ensure safety and longevity.

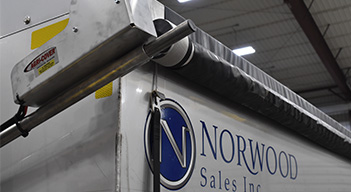

Agri-Cover Tarp

Manual and Electric tarping systems offered. Tarp systems built in Jamestown, ND by Agri-Cover.

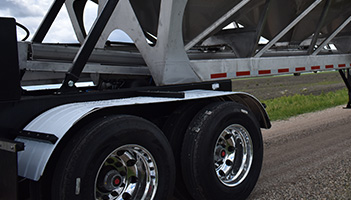

Aluminum Wheels

Aluminum wheels are corrosion resistant and lightweight.

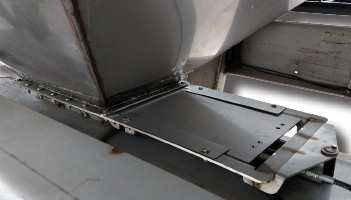

Manual Slide Gate

Manual gates added as yet another safeguard to ensure productivity in the field.

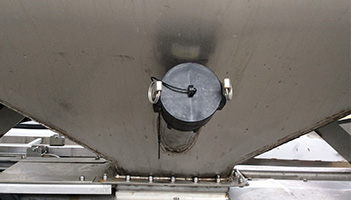

Poke Holes

Allows user the ability to break up settled commodity for continuous conveyor flow.

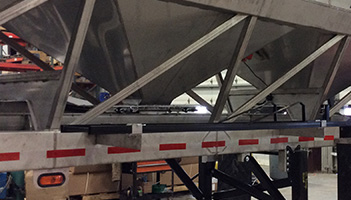

Access Ladder

Allows user a safe way to climb to the top of the trailer.

Optional Features:

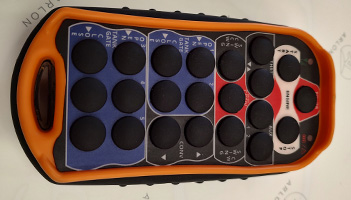

Wireless Conveyor Controller

Wirelessly control gates and conveyor while having the freedom to move around the Tender.

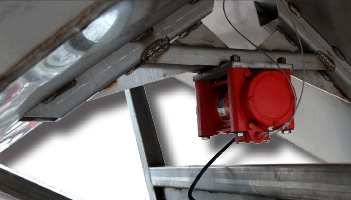

Electric Tank Vibrator

Helps the commodity from settling in the compartments, ensuring a continuous flow to the conveyors.

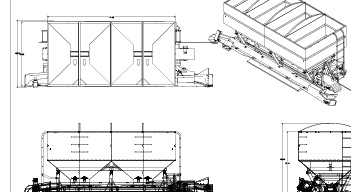

Split Hoppers

Splits are welded into the hoppers to add even more products to the Tender. Gates are often extended when hoppers are split.
